COVID-19の5類感染症移行後における
宿泊者数損失の要因分析

def holt_winters_additive(data, alpha=0.4, beta=0.2):
    """Simple Holt linear (double exponential smoothing)"""
    n = len(data)
    L = np.zeros(n)
    B = np.zeros(n)
    L[0] = data[0]
    B[0] = data[1] - data[0]
    for t in range(1, n):
        L[t] = alpha * data[t] + (1 - alpha) * (L[t-1] + B[t-1])
        B[t] = beta * (L[t] - L[t-1]) + (1 - beta) * B[t-1]
    return L, B

train_years = list(range(2014, 2020))   # 6 years
predict_years = list(range(2020, 2024)) # 4 years

actual_all = pivot[years].values          # (47, 10)
cf_all = np.zeros_like(actual_all, dtype=float)

for i, pref in enumerate(pref_order):
    train_vals = pivot.loc[pref, train_years].values.astype(float)
    L, B = holt_winters_additive(train_vals)
    # training fit
    for j, yr in enumerate(train_years):
        cf_all[i, j] = train_vals[j]   # actual = counterfactual for pre-COVID
    # forecast 4 steps ahead
    L_last, B_last = L[-1], B[-1]
    for h, yr in enumerate(predict_years, start=1):
        cf_all[i, len(train_years) + h - 1] = L_last + h * B_last

# actual stays as real data
actual_total = actual_all.sum(axis=0)   # sum over 47 prefs
cf_total = cf_all.sum(axis=0)

# Loss: counterfactual - actual for 2020-2023 (indices 6-9)
loss_by_pref = (cf_all[:, 6:] - actual_all[:, 6:]).sum(axis=1)

fig, ax = plt.subplots(figsize=(10, 5))

years_arr = np.array(years)
ax.bar(years_arr, actual_total / 1e6, color='steelblue', alpha=0.6, label='実績値（延べ宿泊者数）')
ax.plot(years_arr, cf_total / 1e6, '--o', color='darkred', lw=2,
        label='カウンターファクチャル（Holt-Winters予測）')

# Loss shading
covid_idx = 6
for j in range(covid_idx, len(years)):
    ax.bar(years_arr[j], (cf_total[j] - actual_total[j]) / 1e6,
           bottom=actual_total[j] / 1e6, color='red', alpha=0.3)

ax.axvline(2019.5, color='red', lw=1.5, linestyle=':')
ax.axvline(2022.5, color='orange', lw=1.5, linestyle=':')
ax.text(2020.0, ax.get_ylim()[1] * 0.95, 'COVID-19\n感染拡大', fontsize=9, color='red', ha='center')
ax.text(2023.0, ax.get_ylim()[1] * 0.95, '5類移行\n(2023)', fontsize=9, color='orange', ha='center')

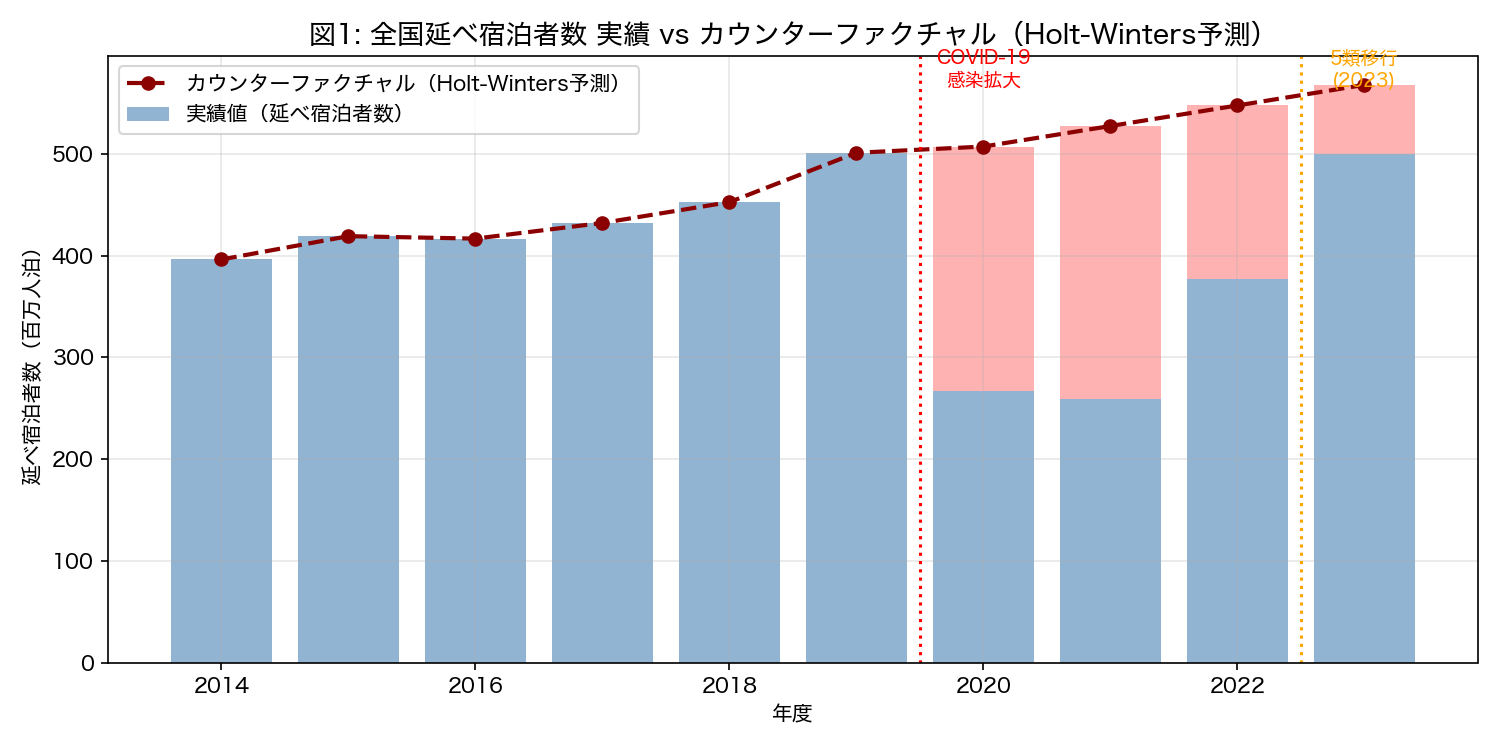

ax.set_title("図1: 全国延べ宿泊者数 実績 vs カウンターファクチャル（Holt-Winters予測）", fontsize=13)
ax.set_xlabel("年度")
ax.set_ylabel("延べ宿泊者数（百万人泊）")
ax.legend(fontsize=10)
ax.grid(True, alpha=0.3)
plt.tight_layout()
plt.savefig(FIGDIR + "2024_U1_fig1_trend.png", dpi=150)
plt.close()
print("fig1 saved")

import matplotlib
matplotlib.use('Agg')
import matplotlib.pyplot as plt
import matplotlib.patches as mpatches
import numpy as np
import pandas as pd
from scipy import stats
from numpy.linalg import lstsq
from sklearn.preprocessing import StandardScaler

plt.rcParams['font.family'] = 'Hiragino Sans'
plt.rcParams['axes.unicode_minus'] = False

import os
FIGDIR = os.path.normpath('html/figures') + os.sep
DATA_B = 'data/raw/SSDSE-B-2026.csv'
DATA_E = 'data/raw/SSDSE-E-2026.csv'
os.makedirs(FIGDIR, exist_ok=True)

df_b = pd.read_csv(DATA_B, encoding='cp932', header=1)
mask = df_b['地域コード'].str.match(r'^R\d{5}$', na=False) & (df_b['地域コード'] != 'R00000')
df_b = df_b[mask].copy()
df_b = df_b[df_b['年度'].between(2014, 2023)].copy()

# 都道府県リスト（北海道順）
pref_order = (df_b[df_b['年度'] == 2023]
              .sort_values('地域コード')['都道府県'].tolist())

# 延べ宿泊者数のパネルデータ（都道府県×年度）
pivot = df_b.pivot_table(index='都道府県', columns='年度',
                         values='延べ宿泊者数', aggfunc='first')
pivot = pivot.loc[pref_order]

years = list(range(2014, 2024))

high_tourism = ['沖縄県', '東京都', '大阪府', '北海道', '京都府']

fig, ax = plt.subplots(figsize=(12, 8))
loss_series = pd.Series(loss_by_pref / 1e6, index=pref_order).sort_values(ascending=True)
colors = ['#C62828' if pref in high_tourism else '#1565C0' for pref in loss_series.index]

ax.barh(loss_series.index, loss_series.values, color=colors, alpha=0.8, edgecolor='white')
ax.axvline(loss_series.mean(), color='gray', lw=1.5, linestyle='--')
ax.text(loss_series.mean() + 0.5, 2, f'平均={loss_series.mean():.1f}', fontsize=9, color='gray')

red_patch = mpatches.Patch(color='#C62828', alpha=0.8, label='主要観光都道府県')
blue_patch = mpatches.Patch(color='#1565C0', alpha=0.8, label='その他')
ax.legend(handles=[red_patch, blue_patch], fontsize=10)

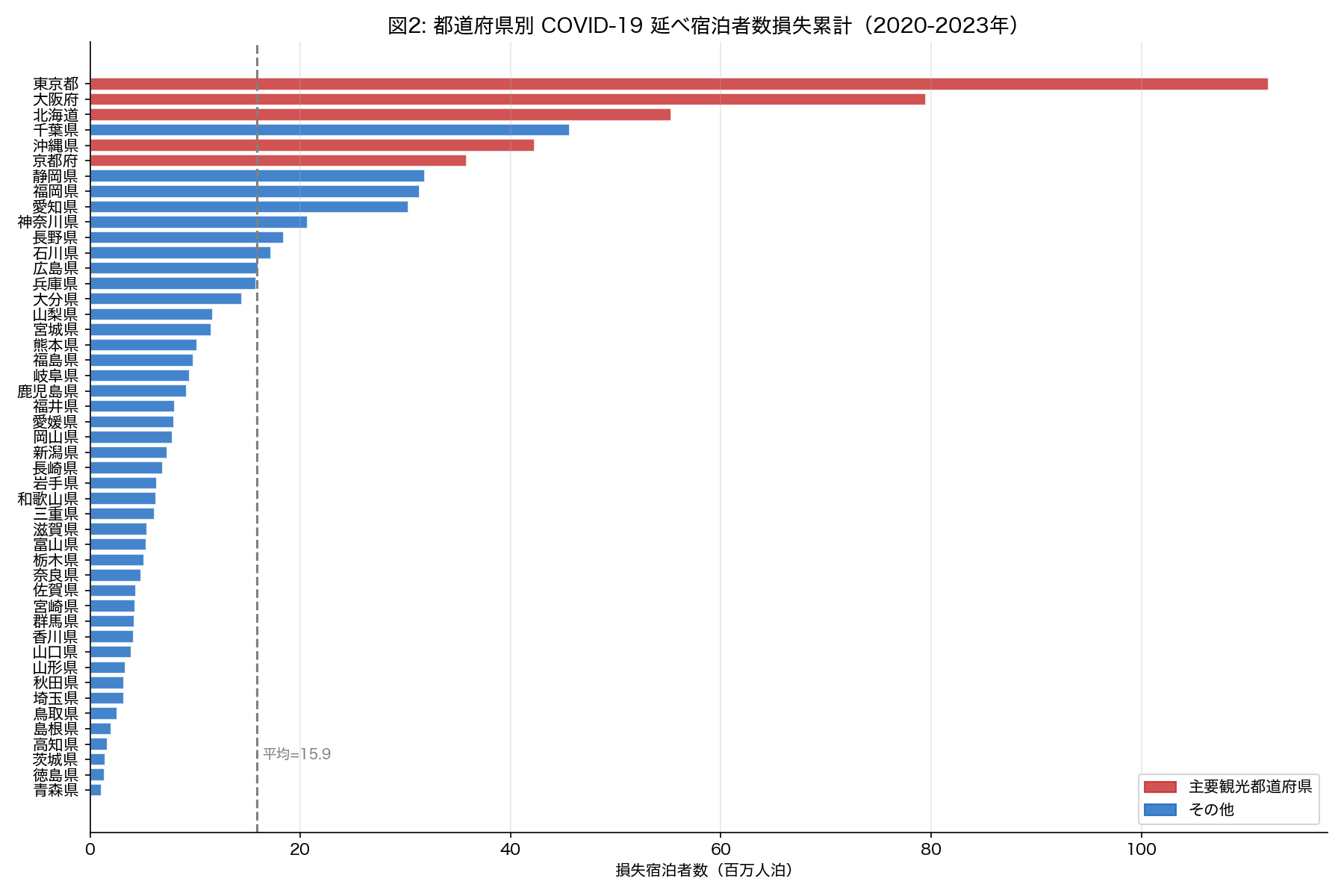

ax.set_title("図2: 都道府県別 COVID-19 延べ宿泊者数損失累計（2020-2023年）", fontsize=13)
ax.set_xlabel("損失宿泊者数（百万人泊）")
ax.grid(True, axis='x', alpha=0.3)
plt.tight_layout()
plt.savefig(FIGDIR + "2024_U1_fig2_loss.png", dpi=150)
plt.close()
print("fig2 saved")

df_e_raw = pd.read_csv(DATA_E, encoding='cp932', header=0)
df_e = df_e_raw.iloc[2:].copy()
df_e.columns = df_e_raw.iloc[1].values
df_e = df_e[df_e['都道府県'] != '全国'].reset_index(drop=True)

# SSDSE-B 2019年断面（コロナ前）
df_2019 = df_b[df_b['年度'] == 2019].set_index('都道府県')

# 外国人依存度 = 外国人延べ宿泊者数 / 延べ宿泊者数（2019）
df_2019_use = df_2019.reindex(pref_order)
foreign_ratio = (df_2019_use['外国人延べ宿泊者数'].astype(float) /
                 df_2019_use['延べ宿泊者数'].astype(float).replace(0, np.nan)).fillna(0)
hotel_count = df_2019_use['旅館営業施設数（ホテルを含む）'].astype(float)
hotel_rooms = df_2019_use['旅館営業施設客室数（ホテルを含む）'].astype(float)

# 人口規模
population_2019 = df_2019_use['総人口'].astype(float)

# SSDSE-E: 1人当たり県民所得
df_e_indexed = df_e.set_index('都道府県')
income_col = '1人当たり県民所得（平成27年基準）'

# align prefecture names
def align_pref(series, target_list):
    """pref_order と SSDSE-E の都道府県名を合わせる"""
    out = pd.Series(np.nan, index=target_list)
    for p in target_list:
        # exact match
        if p in series.index:
            out[p] = series[p]
        else:
            # try without 県/府/都/道 suffix
            short = p.rstrip('県府都道')
            matches = [k for k in series.index if k.startswith(short) or short in k]
            if matches:
                out[p] = series[matches[0]]
    return out

income_raw = pd.to_numeric(df_e_indexed[income_col], errors='coerce')
income = align_pref(income_raw, pref_order).fillna(income_raw.mean())

df_reg = pd.DataFrame({
    '宿泊者数損失（百万）': loss_by_pref / 1e6,
    '外国人依存度': foreign_ratio.values,
    '旅館施設数（千）': hotel_count.values / 1000,
    '旅館客室数（万）': hotel_rooms.values / 10000,
    '1人当たり所得（万）': income.values / 10000,
}, index=pref_order)

corr = df_reg.corr()

fig, ax = plt.subplots(figsize=(7, 6))
im = ax.imshow(corr.values, cmap='RdYlBu_r', vmin=-1, vmax=1, aspect='auto')
plt.colorbar(im, ax=ax, fraction=0.046, pad=0.04)

labels = corr.columns.tolist()
ax.set_xticks(range(len(labels)))
ax.set_yticks(range(len(labels)))
ax.set_xticklabels(labels, rotation=35, ha='right', fontsize=9)
ax.set_yticklabels(labels, fontsize=9)

for i in range(len(labels)):
    for j in range(len(labels)):
        ax.text(j, i, f"{corr.values[i, j]:.2f}", ha='center', va='center',
                fontsize=9, color='black' if abs(corr.values[i, j]) < 0.7 else 'white')

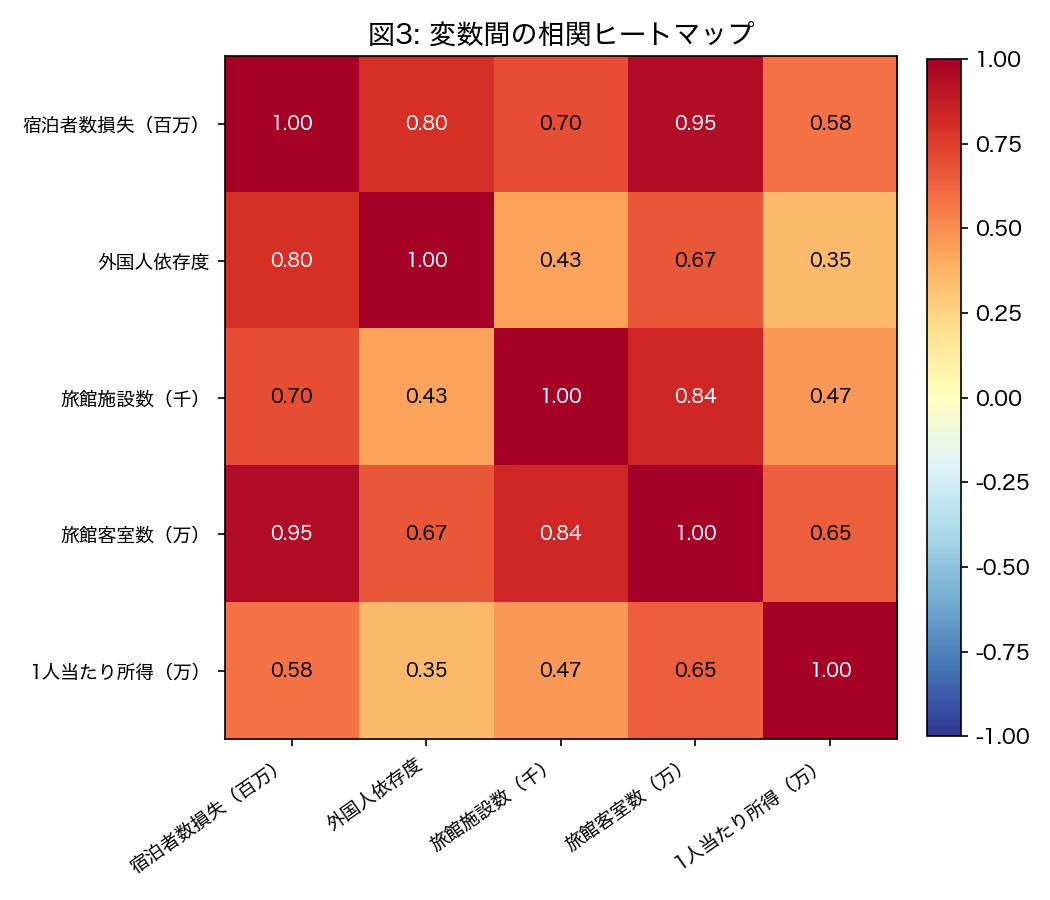

ax.set_title("図3: 変数間の相関ヒートマップ", fontsize=13)
plt.tight_layout()
plt.savefig(FIGDIR + "2024_U1_fig3_corr.png", dpi=150)
plt.close()
print("fig3 saved")

feature_names = ['外国人依存度', '旅館施設数（千）', '旅館客室数（万）', '1人当たり所得（万）']
X = df_reg[feature_names].values
y = df_reg['宿泊者数損失（百万）'].values
n = len(y)

scaler = StandardScaler()
X_std = scaler.fit_transform(X)

X_with_const = np.column_stack([np.ones(n), X_std])
coef, _, _, _ = lstsq(X_with_const, y, rcond=None)
coefs = coef[1:]

residuals = y - X_with_const @ coef
sigma2 = residuals @ residuals / (n - X_with_const.shape[1])
cov = sigma2 * np.linalg.inv(X_with_const.T @ X_with_const)
se = np.sqrt(np.diag(cov))[1:]
t_stats = coefs / se
p_vals = 2 * (1 - stats.t.cdf(np.abs(t_stats), df=n - X_with_const.shape[1]))

fig, ax = plt.subplots(figsize=(8, 5))
colors_coef = ['#C62828' if c > 0 else '#1565C0' for c in coefs]
ax.barh(feature_names, coefs, color=colors_coef, alpha=0.8)

for i, (c, p, se_i) in enumerate(zip(coefs, p_vals, se)):
    sig = "***" if p < 0.001 else ("**" if p < 0.01 else ("*" if p < 0.05 else ""))
    ax.text(c + (0.05 if c >= 0 else -0.05), i, sig, va='center',
            ha='left' if c >= 0 else 'right', fontsize=12)
    ax.errorbar(c, i, xerr=1.96 * se_i, fmt='none', color='black', capsize=4)

ax.axvline(0, color='black', lw=1)

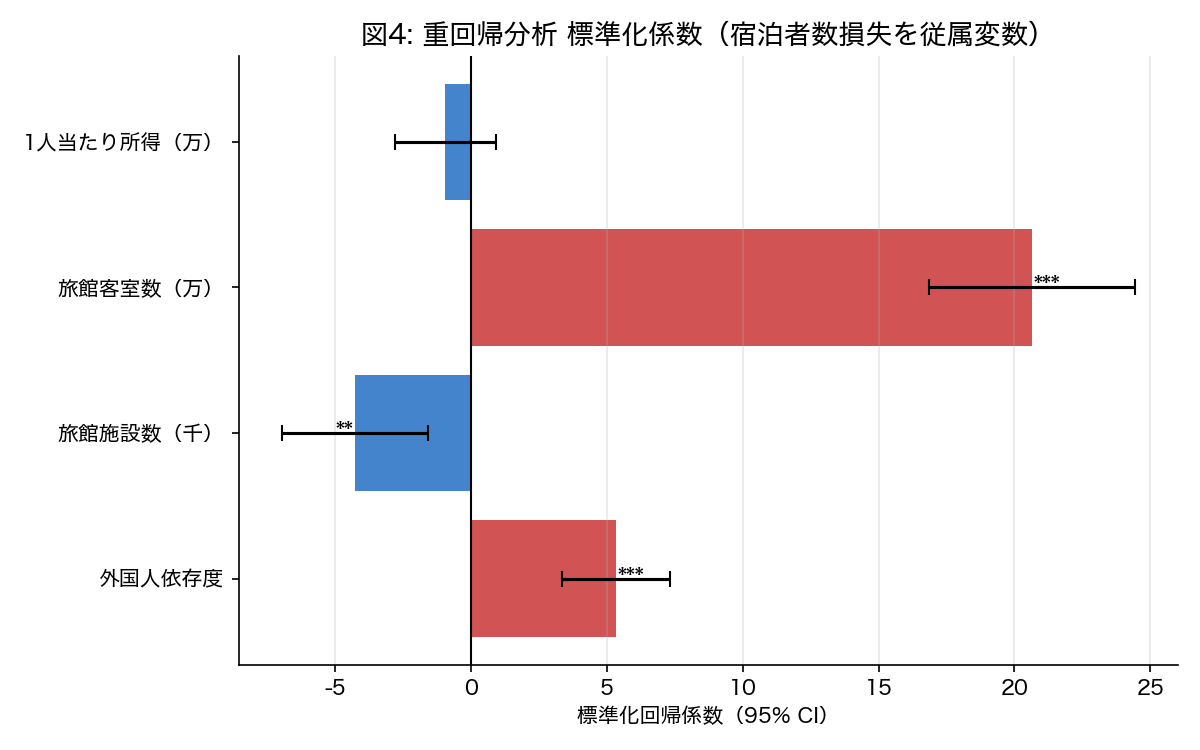

ax.set_title("図4: 重回帰分析 標準化係数（宿泊者数損失を従属変数）", fontsize=13)
ax.set_xlabel("標準化回帰係数（95% CI）")
ax.grid(True, axis='x', alpha=0.3)
plt.tight_layout()
plt.savefig(FIGDIR + "2024_U1_fig4_coef.png", dpi=150)
plt.close()
print("fig4 saved")
print("All figures saved.")
